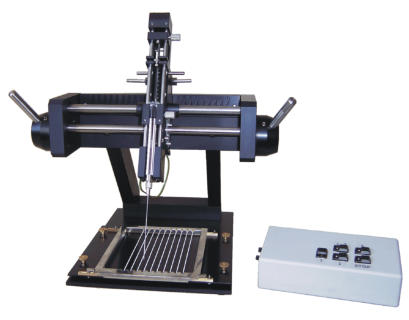

I-3202 semi automated Spotter
SES Model 3202 Spotter for TLC-FID techniques is a
precision instrument specially developed for applying
sample solutions onto the sintered silica gel surface
of a ROD. The smaller and more concentrated the
sample spot, the better the resolution obtained after
development of the ROD in a TLC chamber.
The reproducibility of quantitative and qualitative
analyses with a TLC-FID Analyser is closely related
to the accurate application of a known quantity of
sample onto the surface of a ROD in the form of a
micro spot.
With the "Autospotter" it is possible to apply between
0.020 and 10 micro liters of sample solution. The
spotting is electronically controlled through a small
external microprocessor module, with a precision of
better than 0.5 %.
Chromarod Dryer
Rod Dryer eco
Our smalest Rod Dryer, take just 31x 26 x 39 cm on your table.
He have space for 2 Rods Holder and can be heat up
from 50-200°C. He is only available with 220-240V.
Rod Dryer C8
Our Rods Dryer Oven C8 ist specialy designed for customers
who wants to dry a lot numbers of RODs in the same time. He
can hold up to 8 Rod Holders in once. He works with usual Heating
and with additional infrared heating. They need space of 47x40x32 cm
on your table. He is only available with 220-240V.
Rod Dryer ED23
Our Rods Dryer Oven Ed23 is the standard Dryer.
He have a very good quality , is eays to use and can hold up to 6
Rod Holders in once. They need space of 50 x 45 x 55 cm
on your table. He is availablewith 110-125V and 220-240V.
Rods and Rod Holders

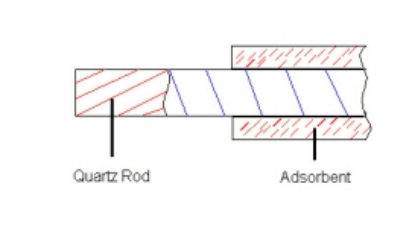

The Rod, developed for a
TLC-FID Analysers. It is a thin
layer in the form of thin quarz
rod evenly applied and sintered
inorganic binder and adsorbent on
it. Usually the cleaning and
activation of Rods can be used
repeatedly. The Rods give
excellent separability of
components and exhibit stable
reproducibility. Special types of
thin-layers, such as those suitable
for seperating triglycerides in accor-
dance with their unsaturation
degrees or glyceride isomers,
can be easily prepared simply
by immersing the rods in silver
nitrate or boric acid solution
respectively.
Helpfull Accessories
Silica Rods
Standard Mixtures for Lipids 8001
Standard Mixtures for Heavy Oil 8011
Development Tank
Filter Paper for Development Tank
Rod Storage Chamber
Rod Holder
Rod Viewer Panel
Rod Dryer TK12 eco
